Senya S3220 DOT MICRO Conveyor

background of speckles
a pile of gravel

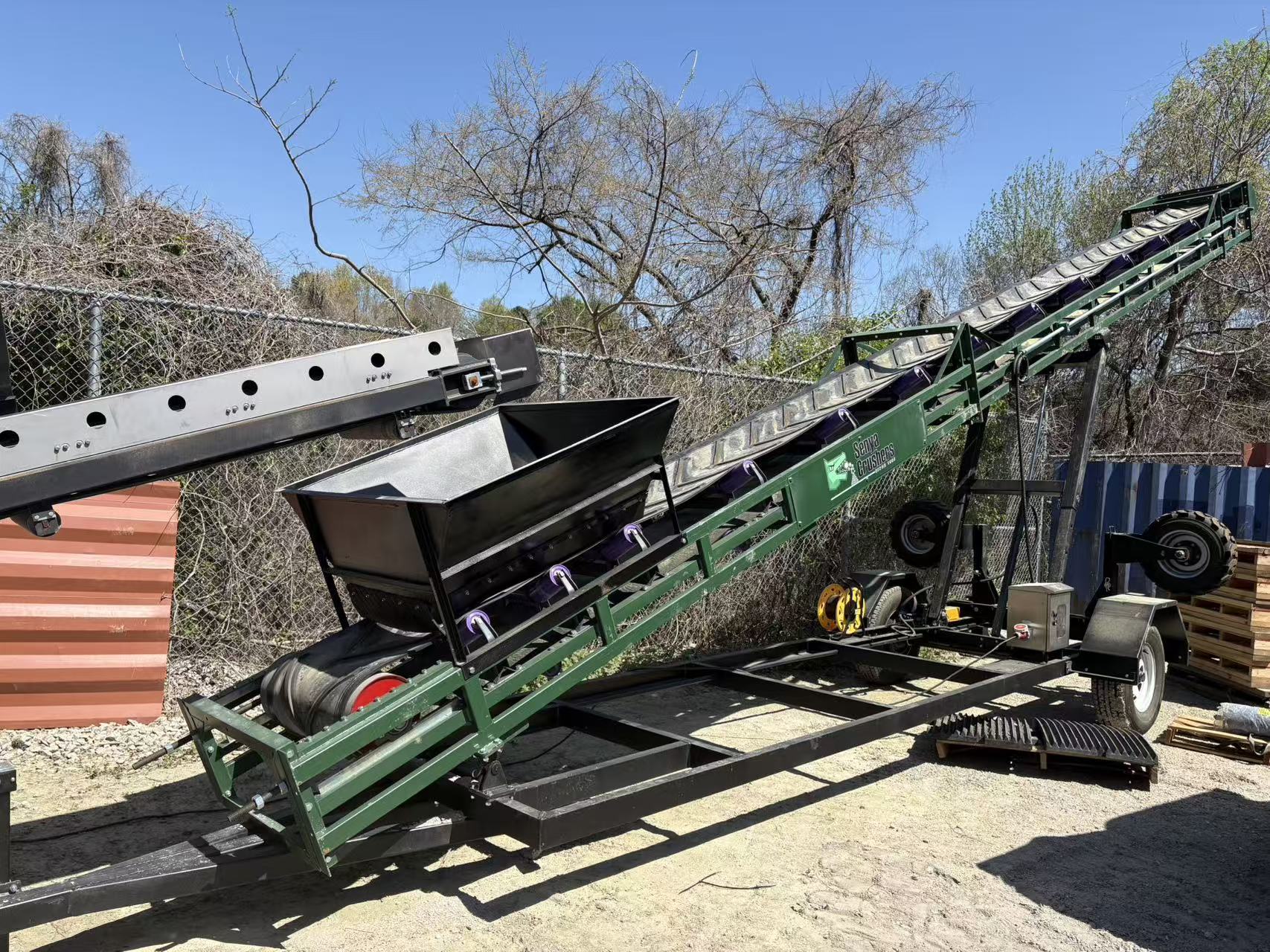

Senya S3220 DOT MICRO Conveyor

  • 32′ x 20″ with 15′ Discharge Point
  • Powered by your Senya MICRO Crusher generator, no need for an additional power source
  • Radial Yard Feature Now Standard
  • Move the conveyor in a 180 arc across your yard to start new piles, no need to reposition equipment!

…Read More
background with dots

Conveyor Specifications

32 ft Length

  • 15 ft. Max Discharge Height
  • 20 in. Wide Belt
  • Steep Climb Belt Cleat Pattern (other belts styles available)
  • 35 Degree Troughing Idlers CEMA C (belt trough depth)
  • 17-20 amp (start amps) 480V power
  • 10-12 amp (running amps) 480V power
  • On/Off Switch
  • Large Loading Hopper with Skirting
  • 130 Tons Per Hour (TPH) @ 100 lbs. per cu. ft. product density
  • Deep “low profile” green color for minimal visual impact in residential and commercial area

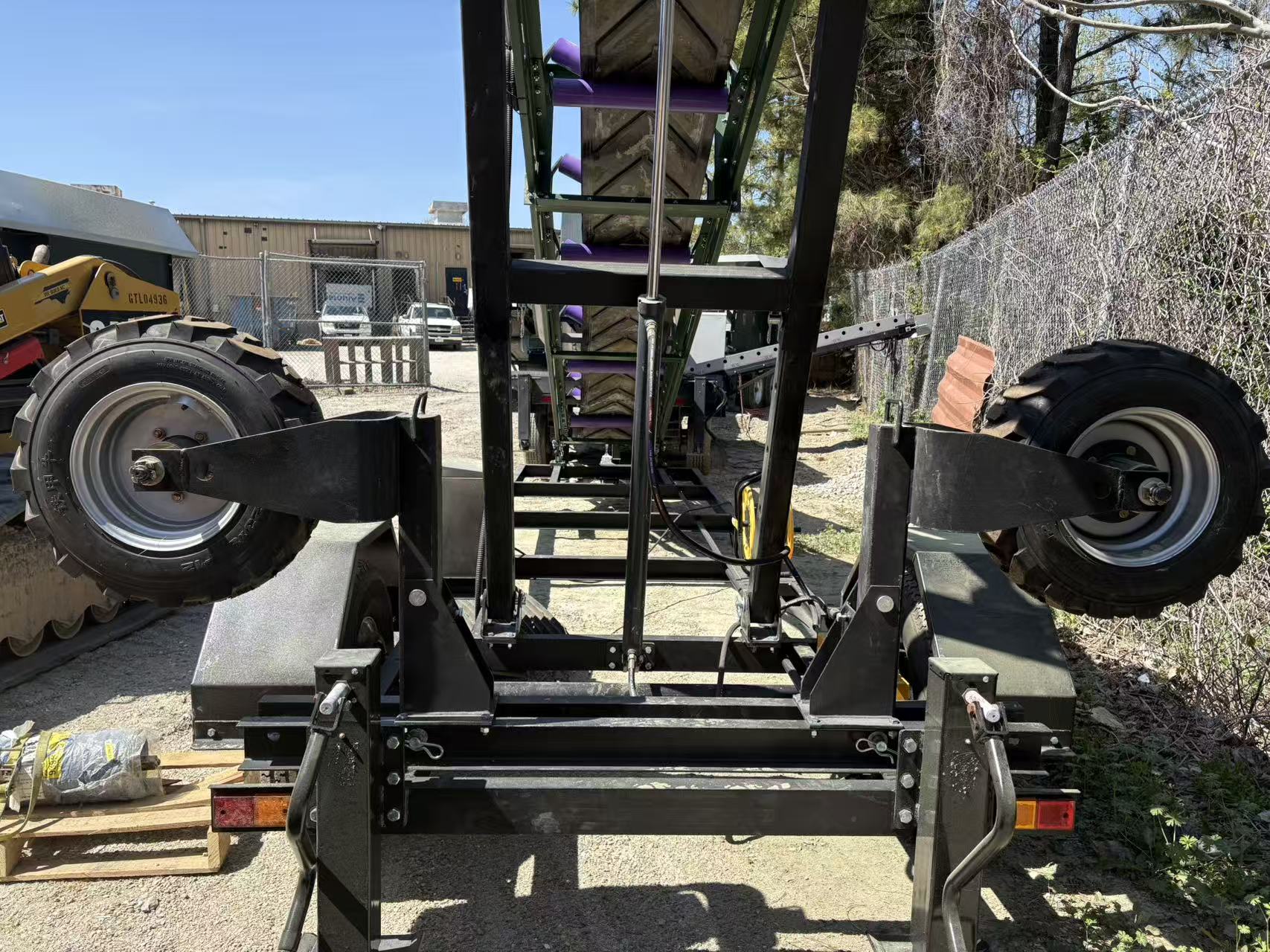

Undercarriage:

  • 2″ Ball coupler
  • 7000 lbs capacity axle with camber
  • radial trailer tires
  • Hydraulic hand pump scissor lift mechanism
  • Adjustable Lift arms
  • Safety hydraulic restriction orifice valve
  • Balanced tongue weight for towing stability
  • Conveyor Rest in down position
Read MoreLess

32’ x 20“
length x width

130 tph
Convey Capacity (t/h)

480 Volt available
Motor

USA
Service and Parts
